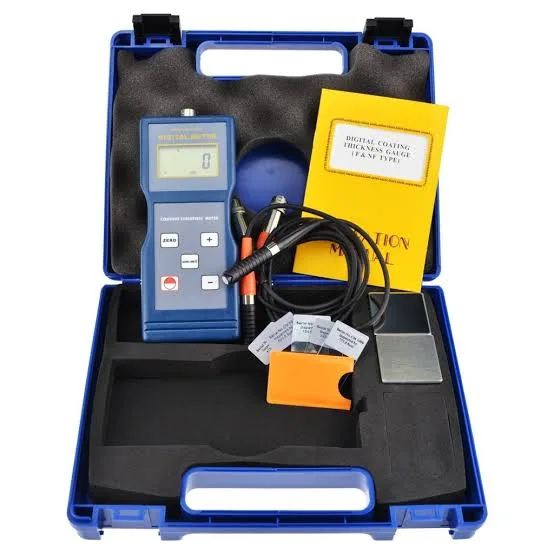

Cm8822
Price on request
Parameter Specification Measurement range 0–1000 µm (0–40 mil) Resolution 0.1 µm below 100 µm; 1 µm above 100 µm Accuracy ±(1–3% of reading) or ±2.5 µm, whichever is greater Measurement principles Magnetic induction (F) and eddy current (NF) Display 4-digit LCD Minimum measurement area 6 mm Minimum substrate thickness 0.3 mm Measurement modes Single and continuous Units µm and mil Power supply 4 × 1.5 V AA batteries Operating temperature 0–50°C Dimensions Approximately 161 × 69 × 32 mm Weight Approximately 250 g without batteries
