Cm8828
Price on request

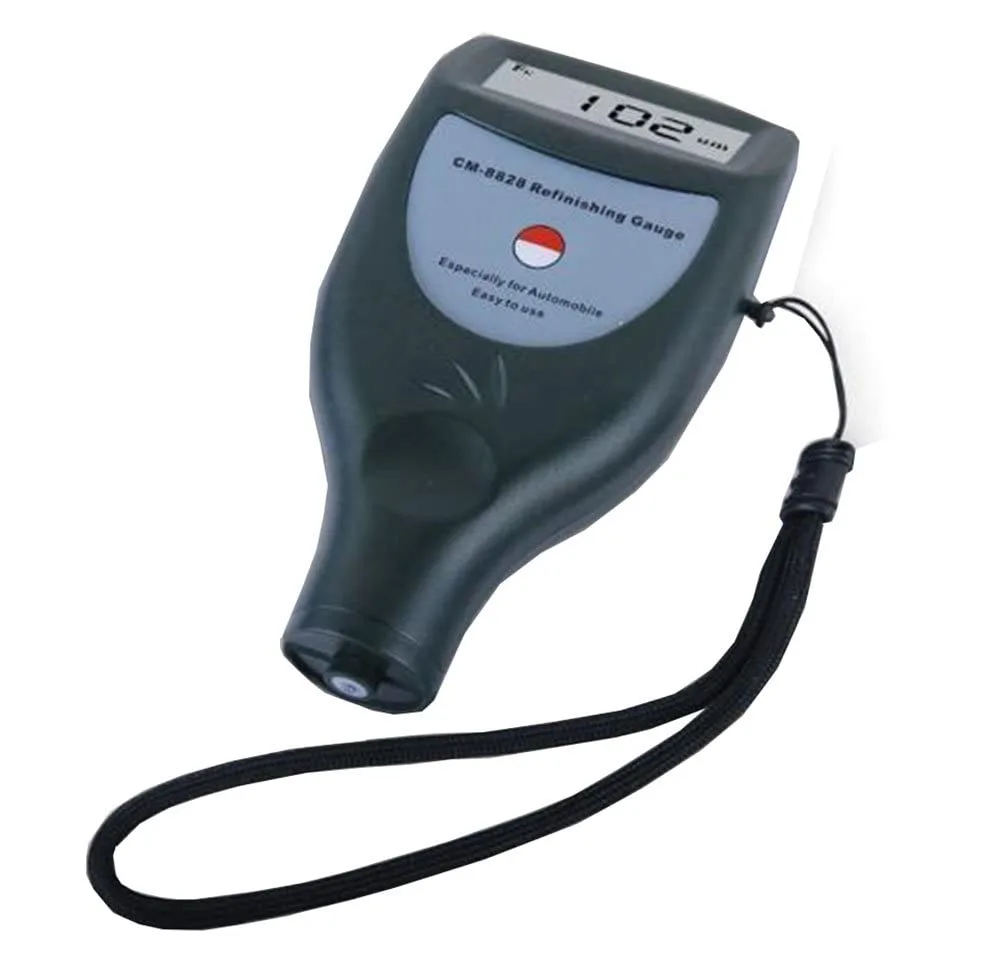

The Landtek CM-8828 is a portable, non-destructive coating thickness gauge used to measure paint, plating and protective coatings on metal surfaces. It uses magnetic induction (F) and eddy current (NF) measurement principles to measure coatings on both magnetic and non-magnetic metal substrates. Parameter Specification Measurement range 0–1250 µm (0–50 mil) Measurement principles Magnetic induction (F) and eddy current (NF) Resolution 0.1 µm / 1 µm Accuracy ±(1–3% of reading) or ±2.5 µm Minimum measuring area 6 mm diameter Minimum substrate thickness 0.3 mm Units µm / mil Display Digital LCD Operating temperature 0–40°C (some listings state up to 50°C) Power supply 4 × 1.5 V AAA batteries Dimensions 126 × 65 × 27 mm Weight Approximately 81 g without batteries
